CAS RW-S and RW-L wheel load scales

RW-S
12.2" x 13.4" platform
click here for brochure

RW-L
24.6" x 13.4" platform
click here for brochure

Truck wheel weigher scale made of rugged cast aluminum.  Easy to read 1" high LCD display with backlight.  Used for car, truck & custom applications.  Up to 6 scales can be connected together for multiple axle weighing.  1% accuracy. Available in two size platforms.  Each scale will display the individual weight and total weight by pressing the "local/total" button.  Runs on AA rechargeable or dry cell batteries.  20 hours continuous before needing a recharge.  Batteries and charger are included.

FEATURES

bulletMulti-Axle Weighing (Up to 6 scales)
bullet1 inch LCD Display with Backlight
bulletkg/lb switchable
bulletDisplays individual or total weight
bulletAdvanced filtering to compensate for vibration
bulletEasy-to-carry steel handle
bulletShock-load protection & cast aluminum construction
bulletWater resistant for use in the toughest environments

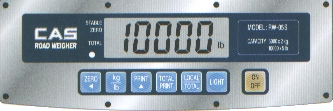

close up of keypad

Model Capacity Dimension(inch/ mm) Price (each)
RW-05S 10,000 x 5 lb 21.1 x 18 x 2.4/ 536 x 458 x 60 $1525
RW-05S NTEP 10,000 x 50 lb 21.1 x 18 x 2.4/ 536 x 458 x 60 $1525
RW-10S 20,000 x 10 lb 21.1 x 18 x 2.4/ 536 x 458 x 60 $1525
RW-10S NTEP 20,000 x 50 lb 21.1 x 18 x 2.4/ 536 x 458 x 60 $1525
Model Capacity Dimension(inch/ mm) Price (each)
RW-05L 10,000 x 5 lb 22.3 x 28.3 x 2.4/ 566 x 718 x 60 $1975
RW-05L NTEP 10,000 x  50 lb 22.3 x 28.3 x 2.4/ 566 x 718 x 60 $1975
RW-10L 20,000 x 10 lb 22.3 x 28.3 x 2.4/ 566 x 718 x 60 $1975
RW-10L NTEP 20,000 x 50 lb 22.3 x 28.3 x 2.4/ 566 x 718 x 60 $1975
Options
2 scale totalizer cable     $95
4 scale totalizer cable     $280
6 scale totlaizer cable     $475
Cable for printer     $75
