T500E scale system

Includes the following:
* (3) or (4) 18" x 18" - 5,000 lb capacity platforms
* Each platform comes with a T500E digital display with RS232 computer/printer output (available
electric or battery powered)
* Each platform is calibrated in 1 lb increments (0.1% accuracy)
* Each scale platform uses (4) 2,500 lb load cells.
* 15 feet of cable from platform to display (longer or shorter lengths available)
* Optional upgrade to M2000 weight indicator with 3 inputs (all 3 scales connect
to one display) See below.
* Custom sizes are no problem
| Model |
System Capacity |
Capacity per pad |
Weight per |
Price |
T500E-5K-3 pads
(steel construction) |
15,000 lb total |
5000 lb each |
75 lbs each |
$2995 |
T500E-5K-4 pads
(steel construction) |
20,000 lb total |
5000 lb each |
75 lbs each |
$3995 |
| |
|
|
|
|
T500E-3K-3 pads
(aluminum constr.) |
9,000 lb total |
3000 lb each |
50 lbs each |
$3,150 |
T500E-3K-4 pads
(aluminum constr.) |
12,000 lb total |
3000 lb each |
50 lbs each |
$3,200 |
| Options |
|
|
|
|
| Ramp (steel) |
|
|
|
$100 each |
| Ramp (aluminum) |
|
|
|
$125 each |
| M2000 CPU upgrade |
|
|
|
$250 adder |
Shown with optional ramps

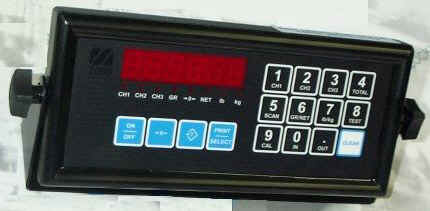

M2000 CPU with 3 scale input
click here for more specifications
|
