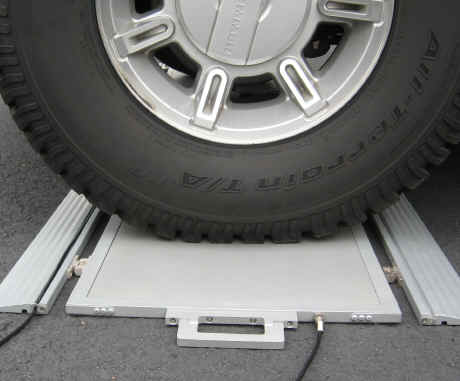

Ultra Low Profile weigh pad
40,000 lb per pad / 80,000lb per axle (less than 3/4" high), wide
enough to accommodate double tires
(Perfect for Environmental & Demolition waste removal applications)
Available in two styles (same price)
 |
|
|
Low profile weigh pads with display in a case
|

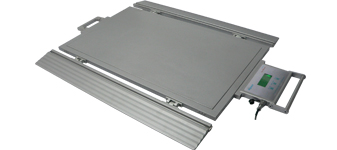

Low profile weigh pads with
built-in display
|
|
|
|
|
Close
up AX-5 indicator in a portable case
|
Close
up of built-in display
|

| Capacity |
| 20,000 lb or 40,000 lb per pad |
|
| Graduation value |
20 lb. (standard), other resolutions
possible |

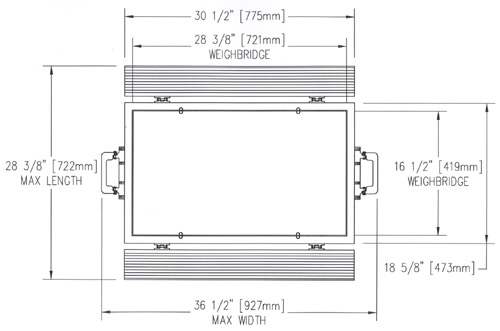

| Overall dimensions |
See sketch |
| Active weighing surface |
28.4" width x 16.5" length
(in traffic direction) |
| Weight |
52 lb. (with ramps), 42 lb. (pad
only) |
| Overload limit |
|
| Temperature range |
-20°C to 60°C |
| Ground requirement |
Concrete or asphalt surface
preferred |
|
|
|

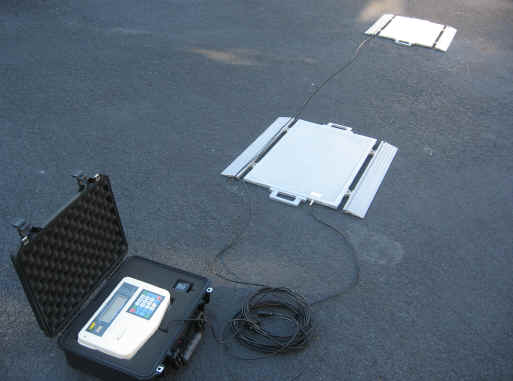

Model AX-5 weight indicator in portable case
shown with optional built-in printer
All the scale pads connect to one display.
Displays in Lbs & Kgs, RS232 printer/computer output
Internal rechargeable battery (12 hour continuous use battery life, 8 hour
recharge).
In WHEEL WEIGHING mode with the total function it is possible to
print/display:
The weight of the single platforms, sum of any of their combinations,
total weight of all the platforms
The number of weighments performed, the accumulated weight and the sum of
the subtotals carried out.
Prints the center of gravity coordinates.
|
Prices
include AX-5
weight indicator
or
Built-in displays
(Same Price)
|
Model
|
Capacity
|
Price
|
|
Ultra
Low profile- 40K-20
(Set
of 2 scales with display or 2 built-in displays)
|
40,000
lb x 20 lb increments
(2) 20,000 lb capacity scales
One axle at a time
|
$3350
|
|
Ultra
Low profile-80K-20
(Set of 4 scales with display or 4 built-in displays)
|
80,000
lb x 20 lb increments
(4) 20,000 lb capacity scales
Two axles at a time
|
$5995
|
|
Ultra Low
profile-120K-20
Set of 6 scales with display or 6 built-in displays)
|
120,000 lb x 20 lb
increments
(6) 20,000 lb capacity scales
Three axles at a time
|
$8995
|
| |
|
|
|
Ultra
Low profile- 80K
(set
of 2 scales with display or 2 built-in displays)
|
80,000
lb x 20 lb increments
(2) 40,000lb capacity scales
One axle at a time
|
$3350
|
|
Ultra
Low profile - 160K
(set
of 4 scales with display or 4 built-in displays)
|
160,000
lb x 20 lb increments
(4) 40,000lb capacity scales
Two axles at a time
|
$5995
|
Ultra
Low profile-240
(Set of 6 scales with display or 6 built-in
displays) |
240,000
lb x 20 lb increments
(6) 40,000lb capacity scales
Three axles at a time |
$8995
|
| |
|
|
|
Options
|
|
|
Built-in
roll tape printer with
time & date |
|
$450
|
|
Ability
to view individual wheel weights one at a time & the total
|
For example:
Wheel 1, Wheel 2, Wheel 3,
Wheel 4 or Axle 1, Axle 2 & Total
|
$195
|

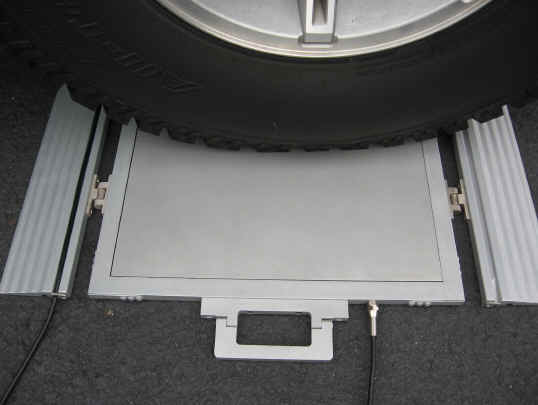

Close up of Ultra low profile axle scale
Click
here for more photos
|
